Application：

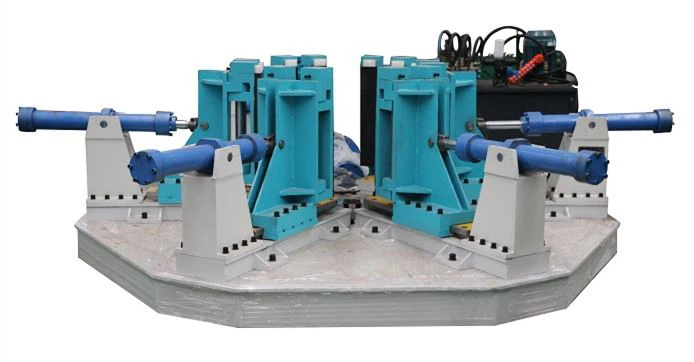

The equipment is used for after vulcanizing v belt、timing belt、poly belt rubber belt tubular then to stripping.
Main technical parameter：
1) The mould circumference of 600 mm to 3000 mm, the mold height 1000 mm.
2) Adopts hydraulic system, Stripping power is from the hydraulic cylinder.
3) Stripping clamp claws are divided into two groups, three jaw single-acting, six claw linkage。
4) Hydraulic station in three way control rise、clamp (second way），each way can adjust pressure and flow rate.
5）Clamp oil cylinder diameter：Ø80
6）Jack-up oil cylinder diameter：Ø125；
7）Double vane pump displacement：55ml/r
8）Motor Power：15KW
9）With the oil-way cooling system
10）Hydraulic pump Specification：variable displacement piston pump
11）Grasp hydraulic pump Specification and material：hydraulic cylinder proprietary material
12）Push-out hydraulic cylinder specification and material：hydraulic cylinder proprietary material
13）Oil tank capacity：（L，W，H）1200*800*700
14）Boundary dimension：（L，W，H）3850*3380*1450
